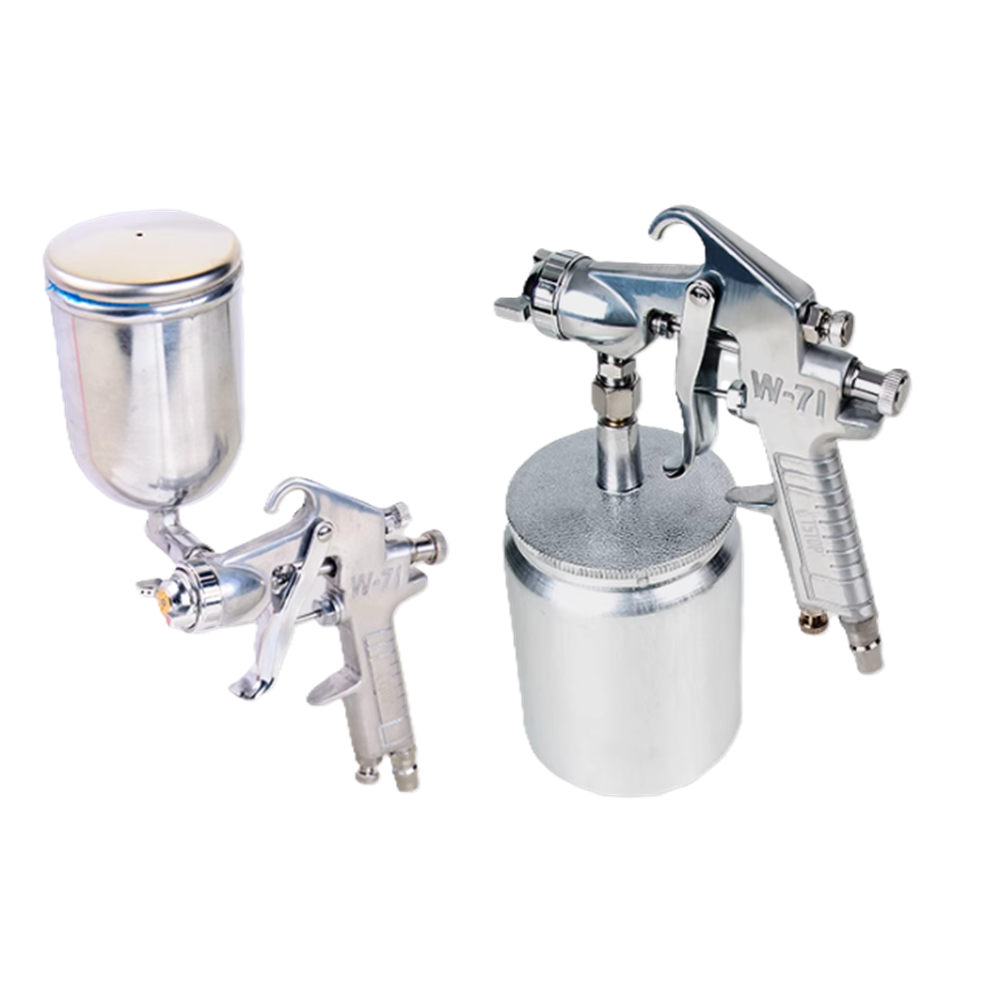

Standard nozzle: φ1.5mm working pressure: 3.0 - 4.0 Pa, Coating width: 180 - 250mm air consumption: 3.5 - 6.0m³ Suction type (lower pot): The pot is below the gun body, with large air consumption and strong suction. The lower pot has better sealing. It is convenient to clean after use. The coating is supplied by sucking it up through the tip of the air cap. The feeding pot with a capacity of 600 - 1000ML is suitable for large-area spraying and relatively does not require frequent addition of paint. Gravity type (upper pot): The pot is above the gun body, ensuring that the pot body is perpendicular at 90° for easy use. It has small air consumption and is cleaner and more convenient to clean after use. The coating is supplied by the force of gravity. The feeding pot with a capacity of 400ML is suitable for small-piece spraying and small-area operations.
