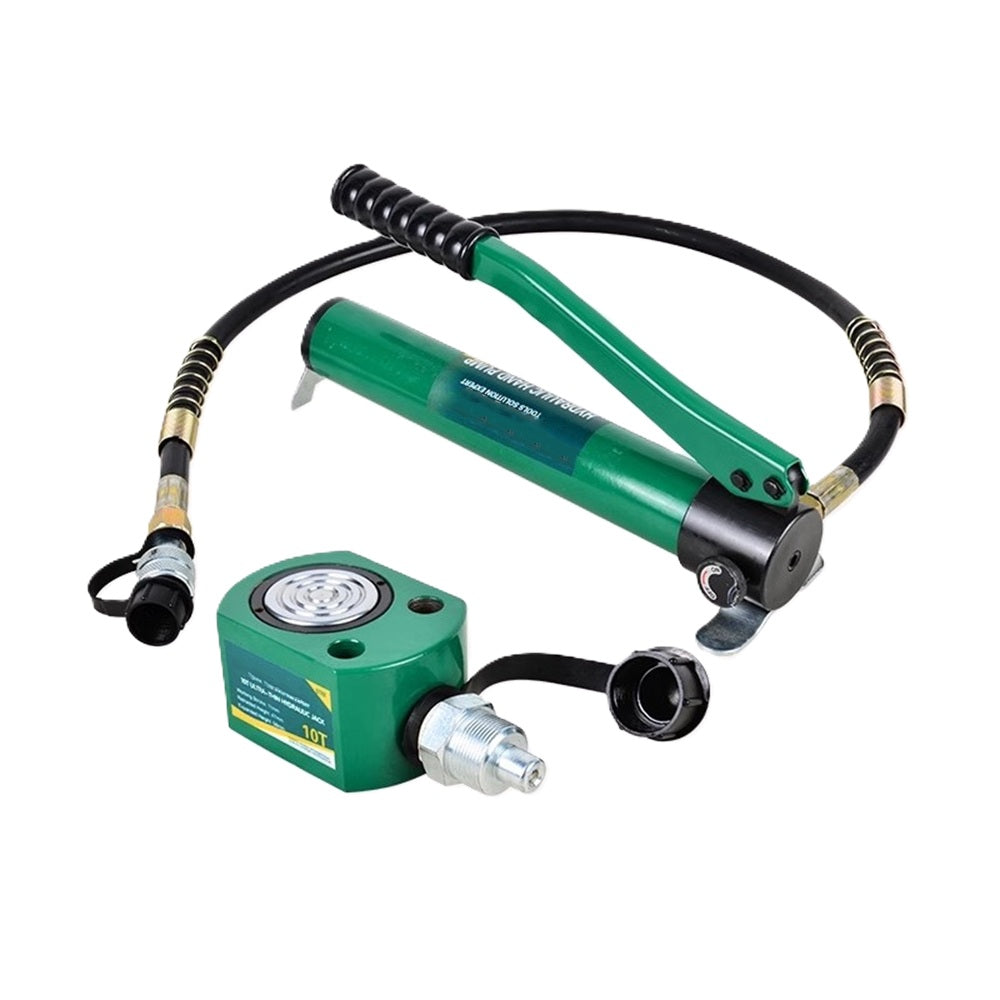

Lightweight and compact design for use in narrow working spaces; The baked enamel surface increases the corrosion resistance; The dust-proof ring reduces pollution and extends the service life of the oil cylinder; The lightweight type is easy to carry, and there are no two holes on the plane of the oil cylinder for fixing.
| Specification |
Working Stroke |
Body Height |
Exltended Height |
| 10T |
11mm |
47mm |
58mm |
| 20T |
11mm |
52mm |
63mm |
| 30T |
12mm |
63mm |
75mm |
| 50T |
16mm |
69mm |
85mm |
| 100T |
16mm |
86mm |
102mm |
| 200T |
20mm |
96mm |
121mm |
